AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher
by shuttermaster.com.ph
₱42,659.00
₱31,599.00
Key Features
- Compact 4-Channel Video Switcher
- 2 x 3G-SDI & 2 x HDMI Inputs
- 1 x HDMI Multiview & 2 x HDMI PGM Out
- 1 x USB-C Out for Capture & Streaming
- Supports up to 1080p60 Video In/Out
- 1 x LAN for Control Input & Streaming
- SD Card/USB-A Recording, 2 x Mic Inputs
- T-Bar, Auto & Cut Transitions
- Audio Mixing, Multiview Output
- Adjustable PiP Size & Positioning
Switch up to two HDMI and two 3G-SDI video inputs while monitoring the program feed with the Shark S4 4-Channel 3G-SDI/HDMI Video Switcher from AVMATRIX. Use the USB-C output together with your computer for capture and streaming. This compact switcher supports up to 1080p60 video input and output with embedded audio and offers audio mixing using the two analog stereo 3.5mm mic/line inputs and output along with the embedded audio. Switcher control options include push buttons, a T-bar, and IP control via the LAN port.
USB Capture & Streaming
Built-in USB-C port can be used to connect the switcher to a computer for USB capture and streaming using software like OBS, Skype, Teams, VLC, Zoom, or vMix.
USB and SD Card Recording
Record your program to an SSD or flash drive in MP4 format using the USB-A recording output, or utilize an optional SD card for in the built-in SD card recording slot.
Live Stream via Ethernet
The LAN port supports IP streaming via RTMP or SRT protocols, allowing you to easily live stream to popular platforms such as YouTube, Skype, Facebook, Twitch, and more.
Software Remote Control
Offers easy control of all settings and operations through the control software, including transitions, audio configurations, media management, and more.

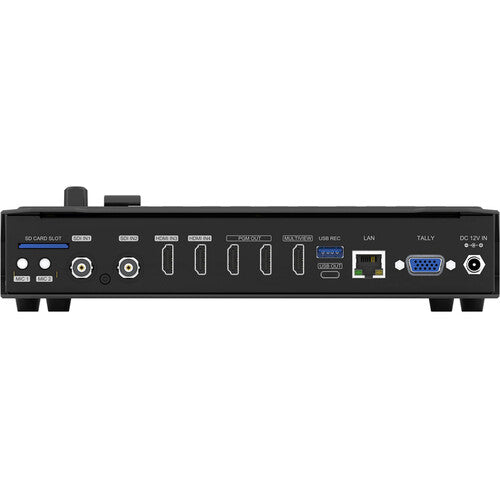

Multiple Interfaces
Multiple interfaces include two 3G-SDI inputs, two HDMI inputs, Program outputs, multiview output, audio inputs, streaming, and recording ports. The outputs can all be configured to pass input, preview, program, clean program, and color bars.
Other Features
- Enhanced chroma key
- Professional audio mixer with embedded and analog audio inputs
- Import up to 39 default patterns, 16 imported images, 16 captured images, and two color generators via USB
- PiP, PoP, logo overlay, transition effects
Applications
- Broadcast
- Education
- Conference
- Social media/vlogging
- Live sports
- House of worship
- Live events
